Flexible (Flex) PCBs

smallheader-1030×687

flex

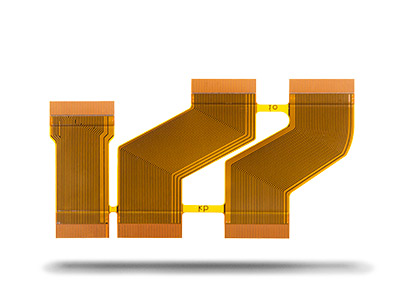

2L Flex – materials: Shengyi SF-305; surface treatement:ENIG

FeatureTechnical Specification
Number of layers 1 – 6 layers
Technology highlightsMainly polyimide materials, flex PCB’s are necessary when motion of the PCB is needed, when 3D interconnections are necessary (i.e. replacing cables and connectors) or when these are both combined due to limited available space.
MaterialsPolyimide, Polyester
Profile methodLaser cutting, punching, Mechanical routing
Copper weights (finished)18um – 70um
Minimum track and gaps0.075mm / 0.075mm
PCB thickness0.05mm – 0.80mm
Maximum dimensions 450mm x 610mm
Surface finishes availableLF HASL, OSP, ENIG, Immersion tin, Electrolytic gold, Gold fingers
Minimum mechanical drill0.15 mm
